YDB隔爆型油冷式電動滾筒按GB3836.1-2000《爆炸性氣 體環境用電設備 第1部分:通用要求》、GB3836.2-2000《爆炸性氣體環境用電設備 第2部分:隔爆型“d”》的要求,設計制造成隔爆型,防爆標志為Exd l, 適用于煤礦(非采掘工作面)含有爆炸性氣體混合物的廠所,安裝尺寸符合行業標準,作為膠帶輸送機的一種新型驅動裝置,與防爆電機+減速器+傳動滾筒形式的傳動裝置比較有明顯的優點,它結構緊湊、安裝安全、操作方便、外形美觀。
YDB隔爆型油冷式電動滾筒的使用范圍
Exd l 類產品用于煤礦(非采掘工作面)主要含有甲烷或煤塵的爆炸性氣體混合物的場所;
注意:廠所周圍介質中不能含有破壞金屬和絕緣的活動性化學物質。
YDB隔爆型油冷式電動滾筒的使用條件
a.海拔不超過 1000m;
b.環境空氣溫度隨季節而變化,但最高溫度不超過35℃(煤礦井下),環境空氣最低溫度-20℃;
c.環境空氣最大相對濕度不超過95%,無凝結;
d.額定電壓380V、660V、380V/660V、660V/1140V,額定頻率50Hz;
e.電動滾筒的額定是連續工作制S1為基準的連續定額,允許滿壓起動,但電動滾筒在負荷啟動時功率必須提高一檔。
YDB隔爆型油冷式電動滾筒的主要規格
滾筒直徑D mm | 功率P KW | 滾筒表面線速度V(m/s) | 皮帶寬度B mm | 滾筒長度 mm |
Φ400 | 5.5 | 0.8,1,1.25,1.6,2,2.5 | 650,800,1000 | 750,950,1150 |
7.5 | 0.8,1,1.25,1.6,2,2.5 | 650,800,1000 | 750,950,1150 | |
11 | 0.8,1,1.25,1.6,2,2.5 | 650,800,1000 | 750,950,1150 | |
Φ500 | 5.5,7.5 | 0.8,1,1.25,1.6,2 | 650,800,1000,1200 | 750,950,1150,1400 |
11,15 | 0.8,1,1.25,1.6,2,2.5 | 650,800,1000,1200 | 750,950,1150,1400 | |
18.5,22 | 0.8,1,1.25,1.6,2,2.5 | 650,800,1000,1200 | 750,950,1150,1400 | |
Φ630 | 7.5 | 0.8,1,1.25,1.6,2,2.5 |
650,800, 1000,1200,1400 |
750,950, 1150,1400,1600 |
11,15 | 0.8,1,1.25,1.6,2,2.5 |
650,800, 1000,1200,1400 |
750,950, 1150,1400,1600 |
|
18.5,22 | 0.8,1,1.25,1.6,2,2.5 |
650,800, 1000,1200,1400 |
750,950, 1150,1400,1600 |
|
30,37 | 1.25,1.6,2,2.5,3.15 | 800,1000,1200,1400 | 950,1150,1400,1600 | |
45,55 | 1.6,2,2.5,3.15 | 800,1000,1200,1400 | 950,1150,1400,1600 |

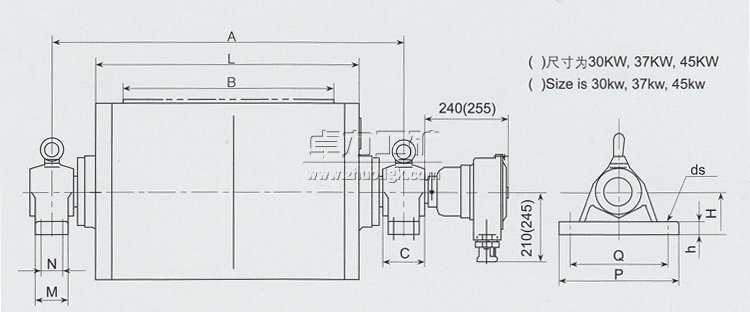

YDB隔爆型油冷式電動滾筒的安裝外形尺寸表
滾筒直徑D Drum dia.D mm |
皮帶寬度B Belt width B mm |
安裝尺寸Mounting&External Size | |||||||||
L | A | H | C | M | N | p | Q | h | ds | ||
Φ400 | 650 | 750 | 1000 | 120 | 90 | 90 | - | 340 | 280 | 35 | Φ27 |
800 | 950 | 1300 | |||||||||
1000 | 1150 | 1500 | |||||||||
Φ500 | 650 | 750 | 1000 | 120 | |||||||
800 | 950 | 1300 | |||||||||
1000 | 1150 | 1500 | |||||||||
1200 | 1400 | 1750 | |||||||||
1400 | 1600 | 2000 | |||||||||
Φ630 | 650 | 750 | 1000 | ||||||||
800 | 950 | 1300 | 140 | 130 | 130 | 80 | 400 | 330 | |||
1000 | 1150 | 1500 | |||||||||
1200 | 1400 | 1750 | 160 | 150 | 160 | 90 | 440 | 360 | 50 | Φ34 | |
1400 | 1600 | 2000 | Φ34 |
卓力工礦 YDB系列隔爆型油冷式電動滾筒型號有:
YDB1.5-(0.8~1.0)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB1.5-(0.8~1.6)-320×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.6~3.15)-500×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.6~3.15)-630×(650~1600)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.63~4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~1.25)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.8~1.6)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.8~2.5)-400×(650~800)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.8~2.5)-500×(650~800)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.8~2.5)-500×(650~800)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~2.5)-630×1000(380/660)隔爆型油冷式電動滾筒
YDB11-(0.8~2.5)-630×1000(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~3.15)-500×(650~1000)(380/660)隔爆型油冷式電動滾筒
YDB11-(0.8~3.15)-500×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~3.15)-500×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~3.15)-630×(650~1600)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~4.0)-400×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB11-(0.8-3.15)-500×(650-1000)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.0~3.15)-630×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB11-(1.0~3.15)-630×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.0~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.0-3.15)-630×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.25~3.15)-400×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.25~3.15)-400×(650~800)(380/660)隔爆型油冷式電動滾筒
YDB11-(1.25~3.15)-400×(650~800)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.25-3.15)-400×(650-800)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.25-4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.6~2.5)-500×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB11-(1.6~3.15)-400×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB11-(1.6-3.15)-500×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB11-(2.0~4.0)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB11-(3.15~4.0)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB11-2.0-400×800(660/1140)隔爆型油冷式電動滾筒
YDB15-(0.6~3.15)-500×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.6~3.15)-630×(650~1600)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.6~3.15)-800×(800~1800)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.63~4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB15-(0.8~2.5)-500×800(380/660)隔爆型油冷式電動滾筒
YDB15-(0.8~2.5)-500×800(660/1140)隔爆型油冷式電動滾筒
YDB15-(0.8~2.5)-630×1000(380/660)隔爆型油冷式電動滾筒
YDB15-(0.8~2.5)-630×1000(660/1140)隔爆型油冷式電動滾筒
YDB15-(0.8~3.15)-500×(650~1000)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.8~3.15)-500×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB15-(0.8~3.15)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.8~3.15)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.8~3.15)-800×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.8~3.15)-800×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB15-(0.8~4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB15-(0.8~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB15-(0.8-3.15)-500×(650-1000)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.0~3.15)-630×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB15-(1.0~3.15)-630×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.0~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.0-3.15)-630×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.25~3.15)-500×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.25~3.15)-630×(650~1600)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.25~3.15)-800×(800~1800)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.25~4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB15-(1.6~4.0)-500×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB15-(1.6~4.0)-500×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB15-(1.6~4.0)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB15-(1.6~4.0)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB15-(1.6-3.15)-500×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(0.6~3.15)-630×(800~1800)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(0.6~3.15)-800×(800~2000)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(0.63~1.25)-630×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(0.8~1.6)-800×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(0.8~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(0.8-2.5)-630X(800-1200)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(0.8-2.5)-630X(800-1200)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.0~3.15)-630×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(1.0-3.15)-630×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.25~2.5)-500×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(1.25~2.5)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.25~3.15)-500×(650~1000)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(1.25~3.15)-500×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.25~3.15)-630×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(1.25~3.15)-630×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.25~3.15)-630×(800~1800)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.25~3.15)-800×(800~2000)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.6~3.15)-500×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(1.6~3.15)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB18.5-(1.6-3.15)-500×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB18.5-(2.0~3.15)-800×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB2.2-(0.8~1.6)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB2.2-(0.8~1.6)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB2.2-(1.0~2.5)-320×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB2.2-(1.0~2.5)-320×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB22-(0.6~3.15)-630×(800~1800)(380/660)隔爆型油冷式電動滾筒
YDB22-(0.6~3.15)-800×(800~2000)(380/660)隔爆型油冷式電動滾筒
YDB22-(0.63~1.25)-630×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB22-(0.8~1.6)-800×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB22-(0.8~4.0)-500×(800~1200)(660/1140)隔爆型油冷式電動滾筒
YDB22-(0.8~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB22-(1.0~3.15)-630×(650~1200)((380/660)隔爆型油冷式電動滾筒
YDB22-(1.0-2.5)-630X(800-1200)(380/660)隔爆型油冷式電動滾筒
YDB22-(1.0-2.5)-630X(800-1200)(660/1140)隔爆型油冷式電動滾筒
YDB22-(1.0-3.15)-630×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB22-(1.25~2.5)-500×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB22-(1.25~3.15)-630×(800~1800)(660/1140)隔爆型油冷式電動滾筒
YDB22-(1.25~3.15)-800×(800~2000)(660/1140)隔爆型油冷式電動滾筒
YDB22-(1.6~3.15)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB22-(2.0~3.15)-800×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.4~4.0)-500×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB3-(0.6~3.15)-315×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.63~3.15)-320×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB3-(0.8~1.0)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.8~1.0)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.8~1.25)-400×(500~650)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.8~1.25)-400×(500~650)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.8~2.5)-315×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB3-(0.8~2.5)-500×(500~800)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.8~3.15)-400×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB3-(0.8-2.5)-400×(500-800)(380/660)隔爆型油冷式電動滾筒
YDB3-(0.8-2.5)-500×(500-1000)(380/660)隔爆型油冷式電動滾筒
YDB3-(1.25~1.6)-320×(500~650)(380/660)隔爆型油冷式電動滾筒
YDB3-(1.25~1.6)-320×(500~650)(380/660)隔爆型油冷式電動滾筒
YDB3-(1.6~2.5)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB3-(1.6~2.5)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB30-(0.6~3.15)-630×(800~1800)(380/660)隔爆型油冷式電動滾筒
YDB30-(0.6~3.15)-800×(1000~2000)(380/660)隔爆型油冷式電動滾筒
YDB30-(1.0~3.15)-630×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB30-(1.25~3.15)-630×(800~1800)(660/1140)隔爆型油冷式電動滾筒
YDB30-(1.25~3.15)-800×(1000~2000)(660/1140)隔爆型油冷式電動滾筒
YDB30-(1.25~3.15)-800×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB30-(1.25-3.15)-630×(800-1400)(660/1140)隔爆型油冷式電動滾筒
YDB30-(1.25-3.15)-630X(1000-1400)(380/660)隔爆型油冷式電動滾筒
YDB30-(1.25-3.15)-630X(1000-1400)(660/1140)隔爆型油冷式電動滾筒
YDB37-(0.6~3.15)-630×(800~1800)(380/660)隔爆型油冷式電動滾筒
YDB37-(1.25~4.0)-630×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB37-(1.25-3.15)-630X(1000-1400)(380/660)隔爆型油冷式電動滾筒
YDB37-(1.25-3.15)-630X(1000-1400)(660/1140)隔爆型油冷式電動滾筒
YDB37-(1.6~3.15)-630×(800~1800)(660/1140)隔爆型油冷式電動滾筒
YDB37-(1.6~4.0)-630×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB37-(1.6~4.0)-800×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB37-(2.0~4.0)-800×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB4-((0.8-2.5)-400×(500-800)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.4~4.0)-500×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.6~3.15)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.63~3.15)-320×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.63~3.15)-320×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.8~1.6)-400×(500~800)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-400×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-400×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-400×(500~800)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-500×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.8~2.5)-500×(500~800)(380/660)隔爆型油冷式電動滾筒
YDB4-(0.8~3.15)-400×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB4-(0.8-2.5)-500×(500-1000)(380/660)隔爆型油冷式電動滾筒
YDB4-(1.25~1.6)-320×(500~650)(380/660)隔爆型油冷式電動滾筒
YDB4-(1.25~1.6)-320×(500~650)(380/660)隔爆型油冷式電動滾筒
YDB4-(1.25~1.6)-320×(500~650)(660/1140)隔爆型油冷式電動滾筒
YDB45-(1.25~4.0)-630×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB45-(1.6~4.0)-630×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB45-(1.6~4.0)-800×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB45-(1.6-3.15)-630X(1000-1400)(380/660)隔爆型油冷式電動滾筒
YDB45-(1.6-3.15)-630X(1000-1400)(660/1140)隔爆型油冷式電動滾筒
YDB45-(2.0~4.0)-800×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.4~4.0)-500×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.6~3.15)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.6~3.15)-500×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8~1.6)-400×(500~800)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~1.6)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8~1.6)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8~1.6)-500×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~2.5)-400×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~2.5)-400×(500~800)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8~2.5)-500×(500~800)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8~2.5)-500×(500~800)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~3.15)-320×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~3.15)-400×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~3.15)-500×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~4.0)-320×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8~4.0)-320×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8~4.0)-400×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8~4.0)-400×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.80~2.5)-400×(500~800)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.80~3.15)-500×(500~800)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(0.8-2.5)-400×(500-800)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(0.8-3.15)-500×(500-1000)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(1.0~1.25)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(1.0~1.25)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(1.0~1.25)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(1.0~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB5.5-(2.0~4.0)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB5.5-(2.0~4.0)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB55-(2.0~4.0)-630×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB55-(2.0~4.0)-630×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB55-(2.0~4.0)-800×(800~1400)(380/660)隔爆型油冷式電動滾筒
YDB55-(2.0~4.0)-800×(800~1400)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.6~3.15)-400×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.6~3.15)-500×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.63~4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.0)-500×(650~800)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.0)-500×(650~800)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.5)-400×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.5)-400×(650~800)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.5)-500×(500~800)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.5)-500×(500~800)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.5)630×1000(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.8~2.5)630×1000(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8~3.15)-320×(500~1000)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8~3.15)-500×(500~1000)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.8~3.15)-500×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8~4.0)-400×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(0.8~4.0)-400×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(0.8-3.15)-500×(500-1000)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.0~2.5)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(1.0~2.5)-630×(650~1400)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(1.0~2.5)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.0~3.15)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(1.0~3.15)-500×(500~1200)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(1.0~3.15)-500×(500~1200)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.0~3.15)-630×(650~1200)(380/660)隔爆型油冷式電動滾筒
YDB7.5-(1.0~4.0)-500×(650~1200)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.0~4.0)-630×(650~1400)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.25~3.15)-400×(500~800)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.25~3.15)-400×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.25-3.15)-400×(500-800)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.6~3.15)-400×(650~1000)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-(1.6-3.15)-400×(650-1200)(660/1140)隔爆型油冷式電動滾筒
YDB7.5-1.6-400×650(660/1140)隔爆型油冷式電動滾筒

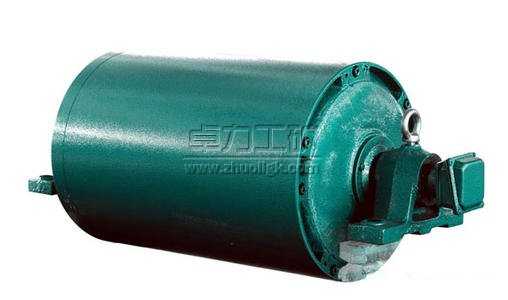

卓力工礦是國內知名YDB隔爆型油冷式電動滾筒(定軸齒輪傳動)生產廠家,有豐富的經驗為客戶提供高品質的YDB隔爆型油冷式電動滾筒(定軸齒輪傳動)及完善的售后服務,如果您想了解最新YDB隔爆型油冷式電動滾筒(定軸齒輪傳動)價格或者更詳細信息,歡迎撥打服務熱線:13280082001 18605374511.或者聯系在線客服: 點擊這里、立刻咨詢;我們攜程為您服務!
常見問題:YDB隔爆型油冷式電動滾筒(定軸齒輪傳動)發貨時間? YDB隔爆型油冷式電動滾筒(定軸齒輪傳動)售后保障? YDB隔爆型油冷式電動滾筒(定軸齒輪傳動)訂貨需要提供什么信息?
產品標簽:YDB隔爆型油冷式電動滾筒(定軸齒輪傳動)|
隔爆型油冷式電動滾筒廠家
|
